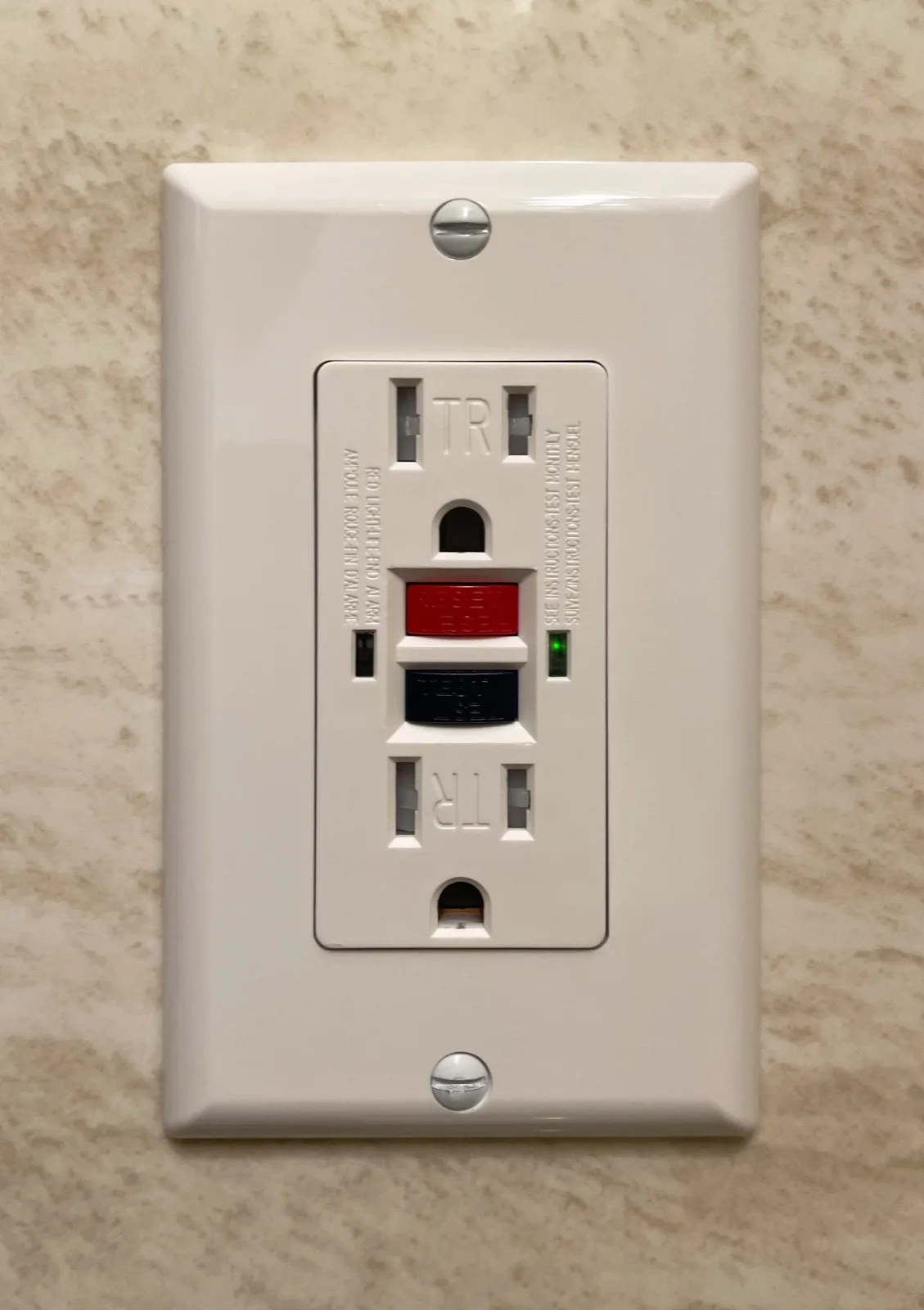

A Ground-Fault Circuit Interrupter (GFCI) outlet — the one with TEST and RESET buttons — shuts power off in a fraction of a second if it senses current leaking somewhere it shouldn't, like through a person. Over the last several National Electrical Code cycles, the list of rooms that require it has grown to cover kitchens, bathrooms, garages, unfinished basements, outdoor outlets, and anywhere within six feet of a sink.

A GFCI protects people from shock; it doesn't do anything about a wiring fault starting a fire, which is a different device's job.

An Arc-Fault Circuit Interrupter (AFCI) breaker watches for the electrical signature of arcing — a loose connection, a nicked wire inside a wall, a nail through a cable — and trips before that arc has a chance to start a fire. Since the 2014 National Electrical Code cycle, most living spaces in a new or renovated home require AFCI protection, not just kitchens and baths.

AFCI breakers live in the panel, not on the outlet itself, which is part of why homeowners rarely know they have them until one trips.

Combination AFCI/GFCI breakers (standard on most new circuits now, since they cover both protections in one device) are built with a trip-free mechanism: when the internal electronics trip the breaker, the handle stops in a middle position, not simply at OFF. That middle position is the first clue this wasn't a manual switch or an ordinary overload — the handle has to be pushed firmly to OFF before it will reset to ON. Beyond that shared behavior, each panel manufacturer adds its own way of showing which protection tripped.

Square D

Square D's Homeline and QO dual-function breakers use the trip-free middle-handle position described above for either an arc-fault or a ground-fault trip. The breaker's own label spells out the reset procedure — push firmly to OFF, then to ON — since a normal flip won't clear it.

Eaton

Eaton's combination-type breakers (BR and CH series) add a visible trip indicator — a small window on the breaker face — so it's obvious at a glance that the breaker tripped on its own rather than being switched off by hand.

Siemens

Siemens dual-function breakers follow the same trip-free handle convention, and some product lines add a self-test indicator that flags when the breaker's own internal diagnostic — not a live fault on the circuit — is what caused the trip.

• A GFCI tripping repeatedly on the same circuit is often a genuine ground fault — moisture in an outdoor box, a damaged appliance cord, or a fixture with failing insulation — not a faulty outlet.
• An AFCI that trips when a specific appliance starts (a vacuum, a space heater, an older refrigerator) can be reacting to normal motor arcing that an older or lower-quality AFCI misreads as a fault; a newer combination-type AFCI is usually less prone to this.
• A GFCI at the start of a circuit protecting several downstream outlets means one bad connection anywhere on that run can trip the whole chain — worth mapping before assuming the visible outlet is the problem.
• Repeated tripping is information, not an inconvenience to just reset past. We trace it to the actual fault rather than swap the outlet and hope.

Since 2008, the National Electrical Code has required tamper-resistant (TR) receptacles — with spring-loaded shutters over the slots — in nearly every outlet in a dwelling, not just rooms with kids. If your home was built or last rewired before that and you have young children, upgrading standard outlets to TR versions is a straightforward retrofit we can do room by room.
